Interface Description

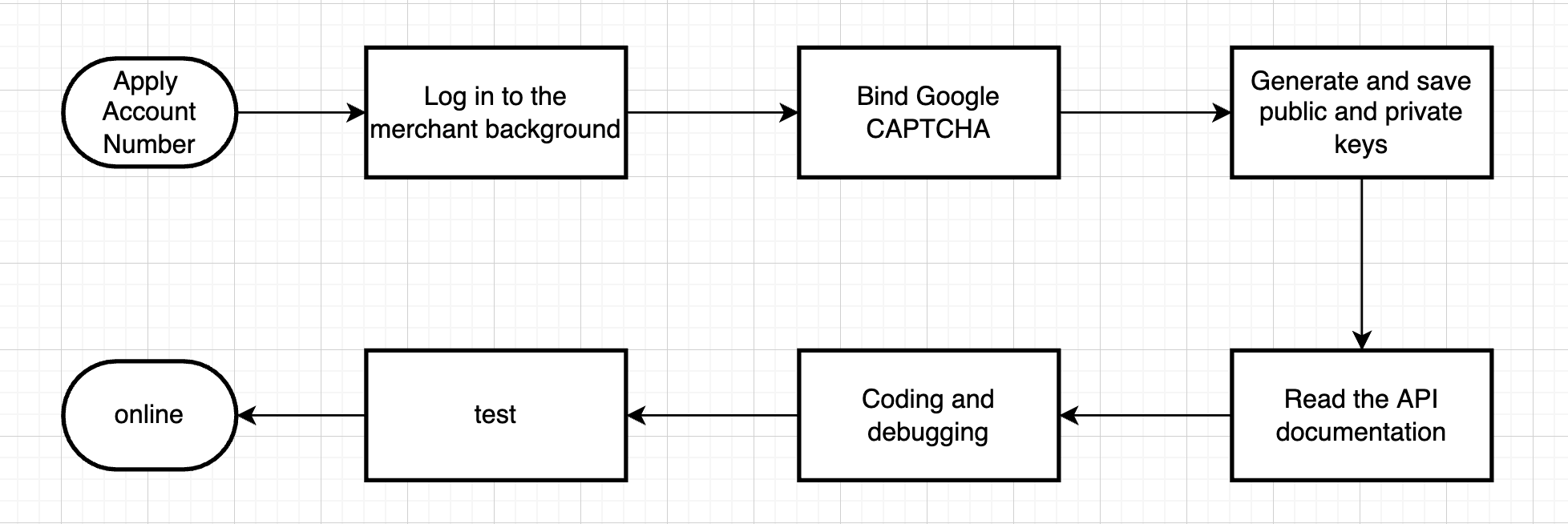

Preparatory work instructions before docking

Public and private key application path

Account Management->ApiKey->createAPI key

During the official launch stage, we strongly recommend that you bind the server IP address. The APIKey that is not bound to the IP address can only be used for 15 days. Modify the APIKey and bind the server IP to take effect again.

System PublicKey

03029c655932f22aee81034d109795fbd7e23ca173ca27e195091d434e593a2e0f

Instructions for using public and private keys & system public keys

Request url

https://payment.tarspay.com

Request body

This is accomplished by sending an HTTP POST request to the server address of the Tarspay API, and adding corresponding request parameters to the HTTP body and HTTP header according to the request structure. The system responds to the return parameters based on the request parameters.

Communication Protocol

For higher security, the Tarspay API interface only supports request communication through the HTTPS channel. When calling the Tarspay system API, the following security requirements need to be followed:

All requests must use SSL, otherwise the request will be rejected. Only TLS 1.2 or TLS 1.1 is supported. SSLv3 and TLS 1.0 are not supported. The merchant system communicates with the Tarspay system and uses signature verification to ensure the integrity of communication information and communication security. See (Signature Mechanism ).

Character Encoding

Both requests and returned results are encoded using the UTF-8 character set.

Parameter format

Both request parameters and return parameters use JSON format.

Content-Type: application/json;charset=utf-8

Return parameters

{
   "code":0,
   "msg":"SUCCESS",
   "data":{
       ...
   }
}

Field	Type	Illustrate
code	integer	0 means the request is successful, non-0 means failure
data	object	Describes the return value of the business call. For details, please refer to the data value of each interface in the business interface.
msg	string	response message

Notification mechanism

Tarspay will send the message of the consumer's payment result to the notifyUrl provided by the merchant through the server, and carry relevant parameters and submit it in the form of POST. Merchants need to perform signature verification on the result information to prevent forged notification information; and must judge the order status in the returned results to determine the order status.

After receiving the request, the merchant server must respond with HTTP 200 and print out the OK string. If the characters fed back to Tarspay by the merchant are not OK characters, the Tarspay server will continuously resend the notification.

In some cases, a merchant may receive multiple notifications from Tarspay for an order. The merchant needs to check its own logic and conduct unique business processing for order notifications that may receive repeated success or failure status.

Signature mechanism

When a merchant calls the Tarspay API interface, the request method, request path, request timestamp and business parameters must be obtained in the form agreed by Tarspay to obtain the corresponding signature string and used as the request header parameter X-API- SIGNATURE is passed to Tarspay.
The data prepared before signing is as follows:
HTTP_METHOD + "|" + HTTP_REQUEST_PATH + "|" + TIMESTAMP + "|" + PARAMS After the connection is completed, perform the data ECDSA signature, the signed bytes are Hex encoded.

HTTP_METHOD：

POST

HTTP_REQUEST_PATH：

For example, create an order collection interface:
https://payment.tarspay.com/api/pay/unifiedOrder The request path is/api/pay/unifiedOrder

TIMESTAMP：

UNIX EPOCH timestamp (accurate to milliseconds) when the API was accessed

PARAMS：

First sort the keys alphabetically, and then parameterize the url, that is, password=password username=username. Because p is sorted before u in the alphabet, password must be placed before username, and then use & to connect, that is: password= password&username=username request parameters are the same for POST and GET. All parameters need to be taken out. The signature rules are as follows: All requested keys are sorted in alphabetical order, and then spliced in the form of key=value (the value does not require urlencode), and use & connect.

Note: The business fields are not fixed. All business fields participate in the signature. It is recommended to process it dynamically to cope with possible additions and subtractions of fields.

Complete example

For the following requests:

HTTP_METHOD	HTTP_REQUEST_PATH	TIMESTAMP
POST	/api/v1/test	1537498830736

PARAMS

Parameter	value
amount	100
price	100

The preparation data before signing is as follows：
1、Assume that all data sent or received is a set M, and the parameters with non-empty parameter values in the set M are sorted from small to large according to the ASCII code of the parameter name (lexicographic order), using the format of URL key-value pairs (i.e. key1=value1&key2 =value2...) concatenated into a string：

Tip: content does not require URLEncode

2、Splice the concatenated string content and method request information MERTHOD, URL and NONCE into a new string separated by "|":

3、Use the private key you generated (PrivateKey) to perform ECDSA signature on the spliced data, and Hex encode the binary result to generate the final signature for verification to the API server.
Put the Api key, nonce and signature generated on the right into the Header according to the above name, and you can pass the signature verification.

The TarsPay signature verification public key can be obtained from the "Web Management Interface - Account Management - apikey" page

Signature tool class

java

Maven dependencies

<dependency>
  <groupId>org.bouncycastle</groupId>
  <artifactId>bcprov-jdk15on</artifactId>
  <version>1.64</version>
  <scope>compile</scope>
</dependency>

ECSDAKit

Utils

php demo

Download link
